How to Choose a Commercial Electric Fan
Not every commercial electric fan works for every space. The right fan depends on the size of the space, how the space is used, and what you need the fan to do. These are the main factors to look at before you buy.
CFM
CFM stands for cubic feet per minute. It measures how much air a fan moves in one minute. A higher CFM means more airflow.
Air movement also has a direct cooling effect on people, even without changing the actual temperature in the room. Jan Fan industrial circulators produce enough air velocity to create a perceived temperature drop of up to 10.3 degrees Fahrenheit. For workers in a hot facility, that is a real difference without adding HVAC load.
CFM ratings for Jan Fan air circulators are tested under the AMCA 230-23 standard. AMCA testing means the airflow numbers are independently verified, not manufacturer estimates.
Fan Size
Bigger fans move more air and cover more space. A 36-inch drum fan works well in a garage or small shop. A 42-inch drum fan handles a loading dock or mid-size warehouse. For open-span buildings like barns or factories with high ceilings, HVLS ceiling fans cover up to 22,500 square feet per unit while running at under 55 decibels.
XP HVLS
The XP is a versatile choice for various commercial environments. Whether it's in boutiques, workshops, or fitness centers, the XP HVLS easily adapts to different settings. Its compact size combined with powerful performance ensures effective air circulation. This model is the best choice for businesses seeking a balance between space constraints and the need for quality air circulation.
Voltage
Most commercial electric fans run on 120-volt power, which is standard in most buildings. Some heavy-duty HVLS models require 200-240V or 380-480V. Before ordering, check your available power supply.
The Hunter XP is the only HVLS fan in this lineup designed exclusively for standard 120-volt power. No electrical upgrade required. It covers up to 4,900 square feet per unit using the same circuit as a standard plug. The Trak Edge also supports 120V and offers a 240V option for facilities that prefer it.
Portable vs. Fixed
Portable fans on stands or wheels are easy to move between spaces or redirect as needed. Fixed fans mounted to walls or ceilings stay in one position but free up floor space and reduce trip hazards. Facilities with defined work zones often use a mix of both.
Indoor vs. Outdoor
Indoor fans are not built to handle rain, humidity, or direct sun exposure. If the fan will be used outdoors or in a space that gets wet, you need an outdoor-rated or wet-rated model.
Hunter fans rated for covered outdoor usage include:
- HAC Oscillating Outdoor Pedestal Fan (outdoor rated)
- Jan Fan Drum Fan (outdoor rated)
- Trak Edge ceiling fan (UL 507 Wet Rated)
Noise Level
Commercial fans move a lot of air and some of them are loud. For spaces where workers need to communicate, look for fans with lower decibel ratings. All Hunter HVLS ceiling fans run at under 55 decibels at max speed, which is roughly the volume of a quiet conversation. The Jan Fan Workstation Fan runs as low as 49 decibels.
Building Code Compliance
In most commercial and industrial buildings with sprinkler systems, the fans you install need to meet NFPA standards. Hunter ECO, Titan, and XP HVLS fans are NFPA 13 and NFPA 72 compliant, which covers fire sprinkler and fire alarm system requirements.
Types of Commercial Electric Fans
Workstation Fans
Workstation fans are small, portable fans built for individual stations, tool benches, break rooms, and tight spaces. They mount on a floor stand, tabletop, or wall bracket and direct airflow at a single person or work area. The Jan Fan Workstation Fan is available in 12-inch and 18-inch sizes, runs on 120V, and includes a yoke mount in the box.
Pedestal Fans
Pedestal fans mount on an adjustable-height pole with a weighted base. They are easy to position at different heights and work well in gyms, machine shops, retail spaces, and open work areas. Hunter pedestal fans are available in 24 and 30-inch sizes. The HAC Oscillating Outdoor Pedestal Fan has an optional misting kit or wall mount accessory and is built for covered outdoor use. The Jan Fan Industrial Air Circulator is available in 20, 24, and 30-inch sizes and supports seven mounting configurations from a single unit including pedestal, mobile pedestal, wall/ceiling, adapter, I-beam, C-channel, and articulating arm.
Wall-Mount Fans
Wall-mount fans attach directly to the wall, which keeps them out of the way of forklifts, foot traffic, and machinery. They work well in spaces where floor space is limited or ceiling mounting is not possible. The HAC Orbital Wall Fan includes a remote and delivers 1,857 CFM from a 20-inch blade in a compact wall-mount housing.
Drum Fans
Drum fans have a round barrel-shaped housing and sit on a wheeled frame that tilts for directional airflow. They are portable, powerful, and widely used in warehouses, construction sites, garages, and loading docks. Hunter drum fans are available in 36-inch and 42-inch sizes under both the HAC and Jan Fan lines. The Jan Fan Drum Fan is outdoor rated and delivers up to 9,965 CFM from the 42-inch model.

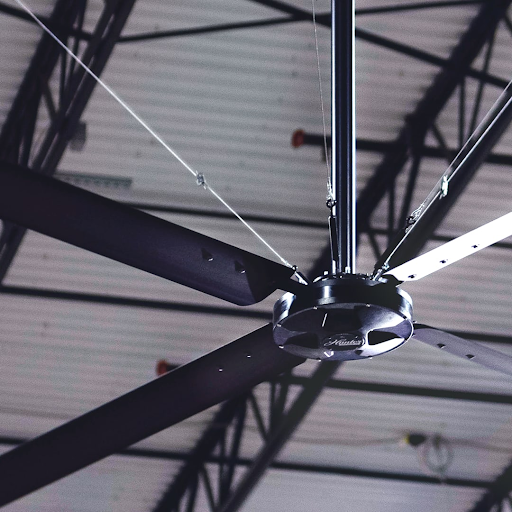

HVLS Ceiling Fans
HVLS stands for high volume, low speed. These fans have blade spans from 7 to 24 feet and turn slowly to push large columns of air toward the floor. They cover up to 22,500 square feet per unit and run at under 55 decibels, quiet enough for occupied spaces. Hunter ECO, Titan, and XP HVLS fans are NFPA 13 and NFPA 72 compliant.
Hunter HVLS fans also connect to building management systems through BACnet MS/TP, BACnet IP, and Modbus RTU protocols using a gateway accessory. This allows facility managers to schedule fans, monitor performance, and integrate airflow control with HVAC from a single system.
Which Commercial Electric Fan Is Right for Your Space
- Workstations, tool benches, and break rooms: Jan Fan Workstation Fan in 12-inch or 18-inch. Targeted airflow for a single station, no permanent mounting required.
- Garages, auto shops, and spaces under 2,000 square feet: Hunter Air Circulators Pedestal/Oscillating Outdoor Pedestal Fan are available in 120V or Jan Fan pedestal fans available in 115V and 230V. Both are available in 24-inch or 30-inch sizes, are portable, and require no installation.
- Loading docks, construction sites, and open bays: Drum fans in 36-inch or 42-inch. High CFM output with a portable, wheeled base for easy repositioning.
- Gyms, event spaces, and commercial spaces with high ceilings: Trak Edge ceiling fan in 5-foot to 8-foot spans. UL 507 Wet rated, available in three finishes, reversible operation for year-round use, and compatible with 120V and 240V power.
- Warehouses and manufacturing spaces from 1,000 to 5,000 square feet: XP HVLS in 7-foot to 14-foot spans. Runs on standard 120V power with no electrical upgrade and covers up to 4,900 square feet per unit.
- Large facilities, distribution centers, and agricultural buildings: ECO HVLS in 8-foot to 24-foot spans or Titan HVLS in 14-foot to 24-foot spans. Covers up to 22,500 square feet per unit, is BACnet compatible, NFPA compliant, and backed by a Limited Lifetime Warranty.
Where Commercial Electric Fans Are Used
Commercial electric fans are used in a wide range of facilities and applications:
- Warehouses and distribution centers
- Manufacturing and factory floors
- Barns, poultry houses, and livestock facilities
- Greenhouses and grow facilities
- Gyms, fitness centers, and recreation centers
- Garages and auto repair shops
- Construction job sites and temporary structures
- Loading docks and receiving areas
- Restaurants and commercial kitchens
- Event venues, tents, and outdoor structures
- Retail stores and large showrooms
- Equestrian arenas and agricultural buildings
Compare Hunter Commercial Electric Fans
Air Circulators
These fans plug into 120V and 115/230V power and require no permanent installation. Use them for targeted airflow, zone coverage, or portable airflow in any commercial or industrial space.
| Model | Type | Sizes | Max CFM | Noise | Power | Warranty |
|---|---|---|---|---|---|---|
| Jan Fan Workstation | Floor / Tabletop / Wall | 12", 18" | 675 (12") / 1,960 (18") | 49–56 dB | 120V | 2 Years |
| Jan Fan Industrial Air Circulator | Pedestal / Wall / I-Beam / C-Channel / Articulating Arm | 20", 24", 30" | 2,818 / 3,935 / 5,179 | 60–71 dB | 115V / 230V | 5 Years |
| HAC Pedestal Fan | Pedestal / Wall Mount | 24", 30" | 2,890 / 3,925 | 63–72 dB | 120V | 1 Year |
| HAC Oscillating Outdoor Pedestal Fan | Pedestal / Wall Mount (Outdoor Rated) | 24", 30" | 3,340 / 4,690 | 65–70 dB | 120V | 1 Year |
| HAC Orbital Wall Fan | Wall Mount | 20" | 1,857 | 66 dB | 120V | 1 Year |
| HAC Drum Fan | Floor / Portable | 36", 42" | 6,560 / 9,120 | 67–74 dB | 120V | 1 Year |
| Jan Fan Drum Fan | Floor / Portable (Outdoor Rated) | 36", 42" | 7,930 / 9,965 | 81–84 dB | 120V | 2 Years |
HVLS Ceiling Fans
These fans mount to the ceiling and are designed to cover large open spaces. They run quietly and move high volumes of air at low speeds. All models are ETL certified. The ECO, Titan, and XP are also NFPA 13 and NFPA 72 compliant for use in sprinklered buildings.
| Model | Blade Span | Max Coverage | Sound Level | Power Options | Warranty |
|---|---|---|---|---|---|
| XP | 7 ft – 14 ft | 4,900 sq ft | Under 55 dB | 120V only | Limited Lifetime |
| ECO | 8 ft – 24 ft | 14,400 sq ft | Under 55 dB | 200–240V / 380–480V | Limited Lifetime |
| DDI | 20 ft – 24 ft | 13,000 sq ft | Under 55 dB | 200–240V / 380–480V | 5 Years |
| Titan | 14 ft – 24 ft | 22,500 sq ft | Under 55 dB | 200–240V / 380–480V | Limited Lifetime |
hunter industrial
Check out our Virtual Showroom
Frequently Asked Questions About Commercial Electric Fans
+
How loud are these fans?
+
Do any of these fans work on standard 120V power?
+
What warranty do these fans carry?
+
Are these fans safe to install in buildings with sprinkler systems?
+
