ECO HVLS FAN

ECO HVLS FAN

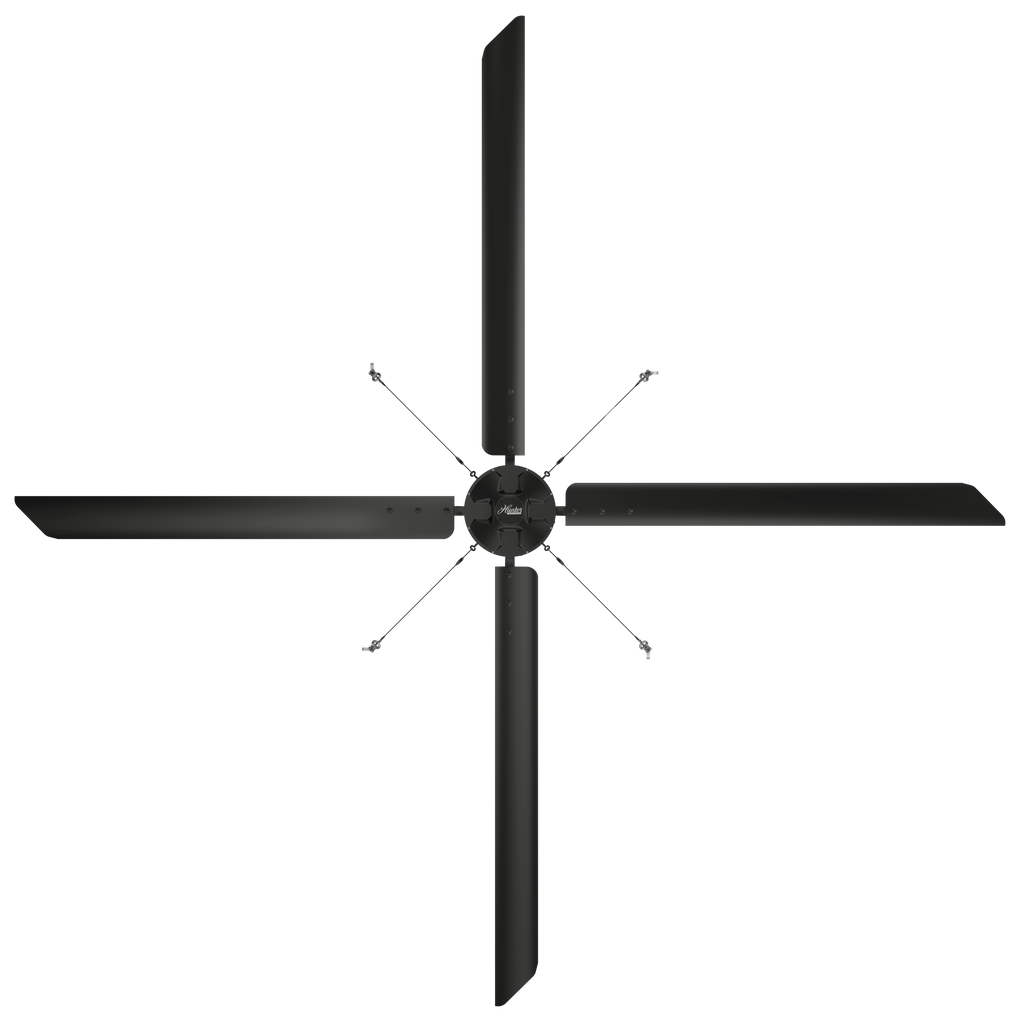

The ECO ceiling fan offers superior air movement and temperature control for industrial facilities at an economical price point. With a direct-drive motor and blades designed by aerospace engineers, this affordable industrial fan provides quiet, energy-efficient airflow to match the demands of most applications.

  • Powerful & Economical
  • Direct Drive Motor
  • Limited Lifetime Warranty
  • Available Diameters: 8’ - 24’
Ideal Environments Manufacturing Facilities
Warehouses
Distribution Centers
Gyms
Lobbies and Atriums
Aviation Hangars
Automotive Centers
Available Blade Diameters 24', 20', 18', 16', 14', 12', 10', 8'
Available Input Power Voltages AC 1PH 200-240V 50/60HZ
AC 3PH 200-240V 50/60HZ
AC 3PH 380-480V 50/60HZ
Safety Features Redundant Safety Systems
Mounting Options I-Beams, Purlin Structures, Unistrut, or Glulam Beams
Building Management Control Options BMS integration over:
BACnet IP
BACnet MSTP
Modbus RTU

10-Day Lead Time

Limited LIfetime Warranty

Installation &
Support

AMCA Certified

Large Industrial Fans

The ECO HVLS fans range from 8 to 24 feet and cover an area of over 14,000 square feet and generate a cooling effect of up to 10 degrees!

Specifying an industrial fan for a new building or renovating an established commercial or industrial space? We have all the data and details you need to help you choose the right Hunter fan, including Submittal Sheets, BIM files, CAD files, 3 Part Spec, Installation Manuals and Warranty Information.

DOWNLOAD SPECS

At Hunter Industrial, our goal is to be a lifetime partner, not just a fan provider, which is why we offer a number of service options to ensure continued peak fan performance. From Installation, Inspection & Cleaning Services, to Troubleshooting assistance, we're here to help. We can also connect you with our network of Factory Authorized Installers.

SERVICES

Specifying an industrial fan for a new building or renovating an established commercial or industrial space? We have all the data and details you need to help you choose the right Hunter fan, including Submittal Sheets, BIM files, CAD files, 3 Part Spec, Installation Manuals and Warranty Information.

DOWNLOAD SPECS

At Hunter Industrial, our goal is to be a lifetime partner, not just a fan provider, which is why we offer a number of service options to ensure continued peak fan performance. From Installation, Inspection & Cleaning Services, to Troubleshooting assistance, we're here to help. We can also connect you with our network of Factory Authorized Installers.

SERVICES

Industrial Fans Engineered for Excellence

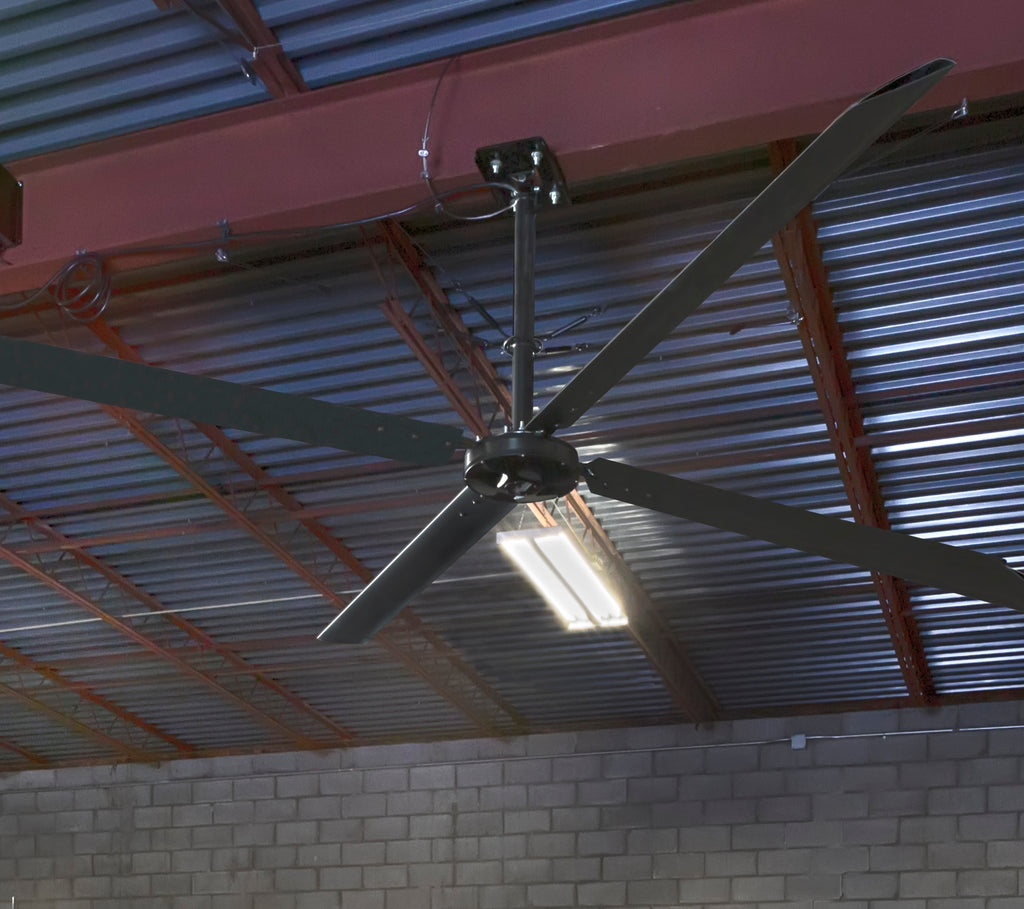

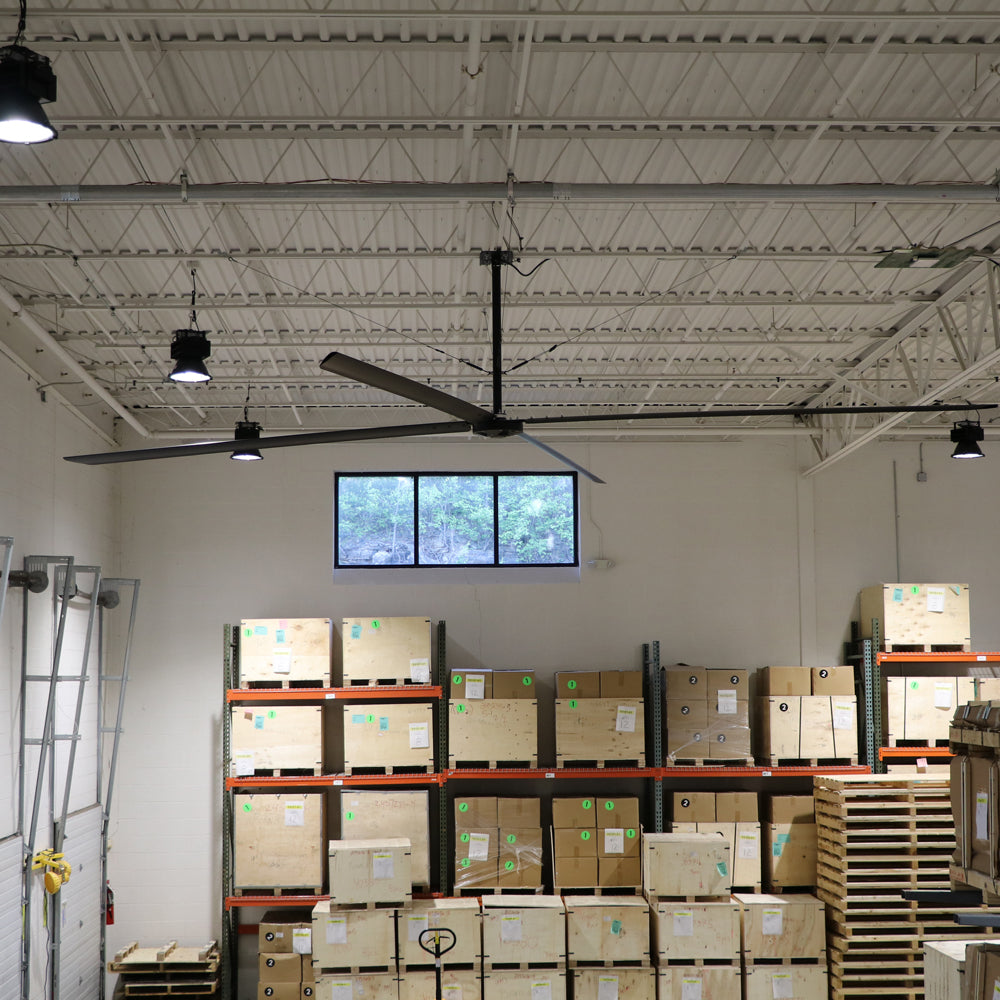

Our ECO ceiling fans are designed to help industrial businesses create optimal working environments with cost-efficient temperature control. These affordable fans are crafted to keep your facility safe, comfortable, and productive with reliable air circulation technology.

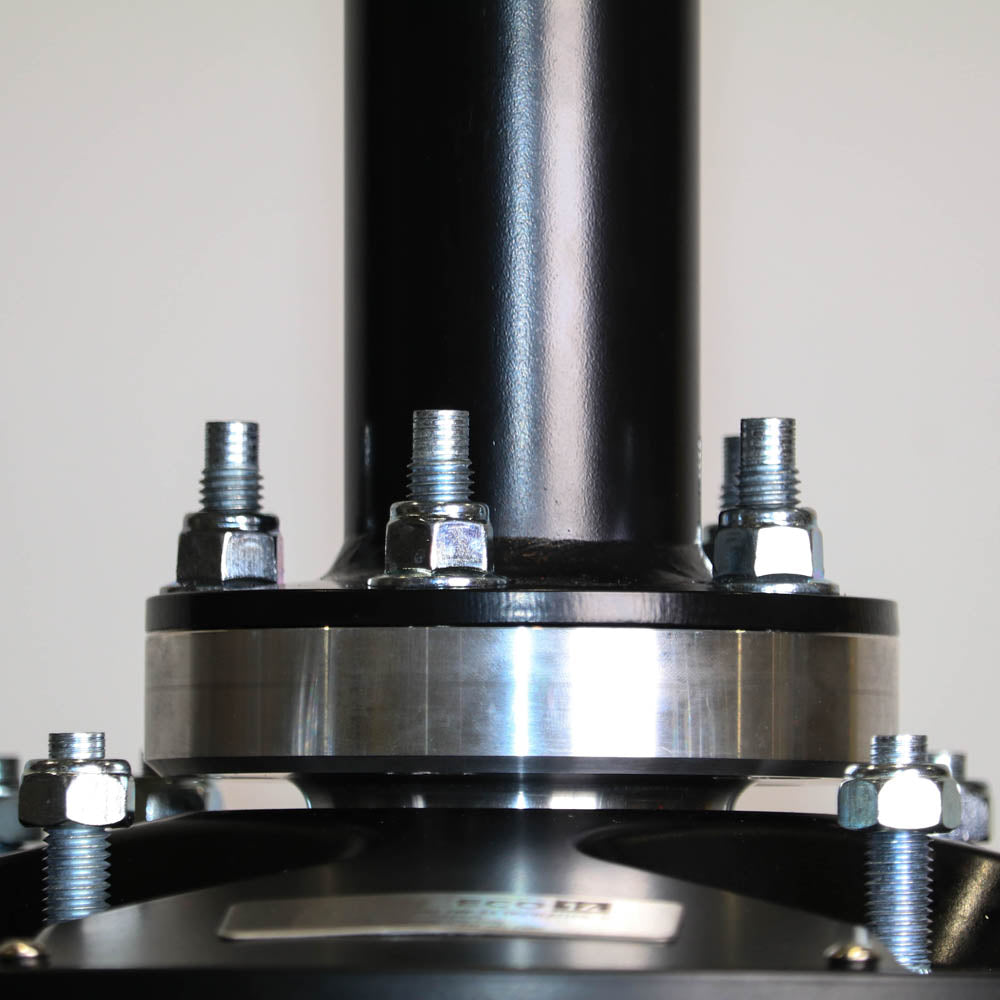

HVLS Adjustable Downrod

Every ECO HVLS fan comes with Hunter’s innovative Adjustable Downrod. This telescoping design comes in three different lengths, ranging from 2ft to 10ft. Designed to fit your needs, our Adjustable Downrod gives our customers confidence in every order, you can rest easy knowing that when your new Hunter industrial fan arrives, it will perfectly fit your space.

HVLS Fan Blade Durability

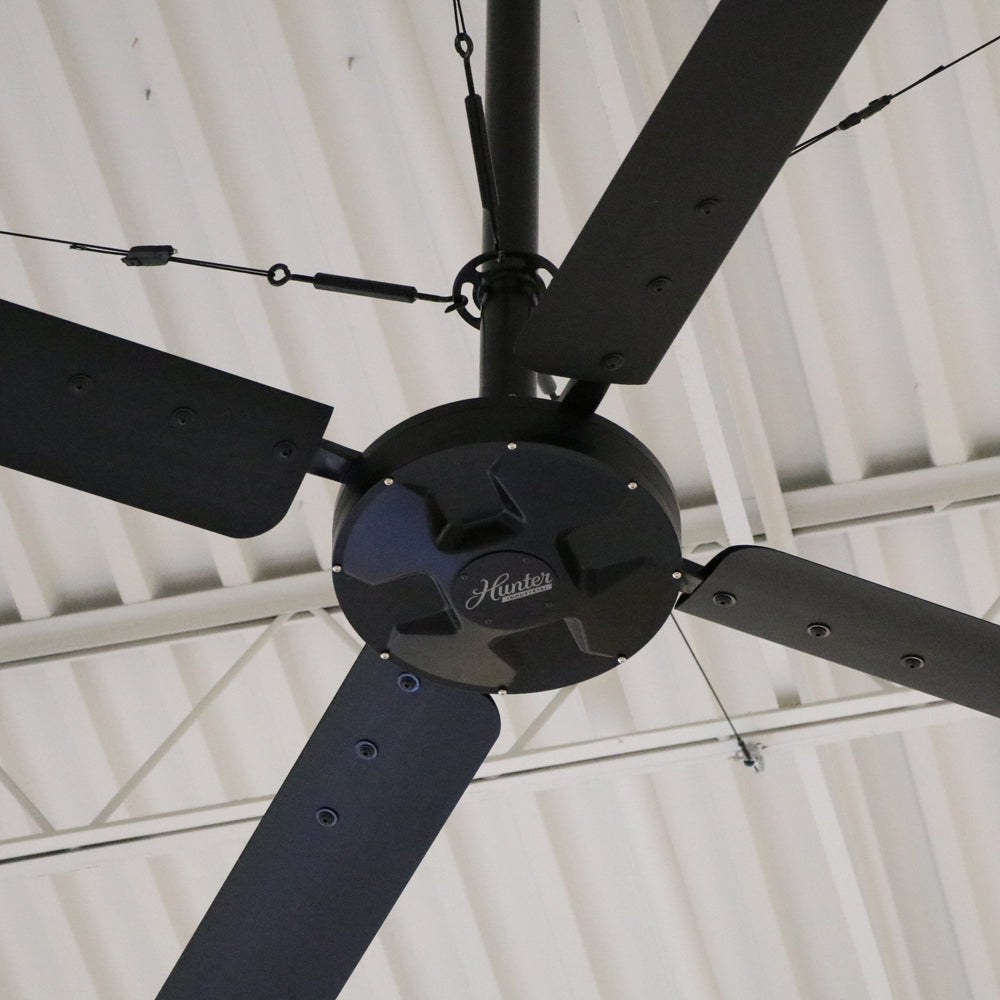

Hunter Industrial’s patented HVLS blade-holder is built from structural-grade steel with a redundant blade attachment system. The blade-holder goes deep into the blade pocket for a secure attachment to the fan blades. Each HVLS fan blade is made of 6005A aluminum, known for its strength, flexibility, and lightweight characteristics. This combination produces a lightweight and incredibly strong HVLS fan blade that creates serious airflow.

ECO Fan Installation

You’ve never experienced an install this easy. The ECO HVLS fan comes with as many pre-installed parts as possible. Our ECO ceiling fans come with pre-installed bolts, pre-wired downrods and pre-aligned mounting brackets. You won’t need any blade clamps either, thanks to our proprietary Quick Connect Blade Retention System. To make things even easier, we offer installation services from our Factory Authorized Installer program!

Even at 24 feet in diameter, ECO ceiling fans are up to 30 percent lighter than typical high-volume, low-speed fans. Installation is as easy as possible with little effort required.

Maintenance and Reliability

The airflow generated by the ECO HVLS fan creates a nearly 10° cooling effect, ensuring that your facility stays productive year-round. By partnering with Hunter Industrial & Commercial, you can rest easy knowing you have installed the most dependable HVLS fans, backed with a Limited Lifetime Warranty. To make things even easier, we offer installation services from our Factory Authorized Installer program!

Unmatched Service and Performance

“By installing the Hunter Industrial Fans, we have managed the heat and humidity, and the fatigue of our technicians… Hunter was able to come in with just a few weeks’ lead time and get these fans installed right before one of the hottest summers on record!”

Jeremy Robertson

Owner of Christian Brother’s Automotive in Fairfield, TX

Install ECO HVLS Fans in Your Facility

Our Hunter Industrial sales reps are here to evaluate your needs and make sure you’re set up to succeed from the start. Chat with our experts about these superior fans!
