PARTS

XP Fixed Downrod Parts

Explore the complete anatomy of the XP Fixed Downrod through the interactive exploded view below. Each numbered component corresponds to a specific part of the fan, from the motor and hub assembly to the airfoils and safety features.

Click on any number to reveal detailed part names below, and dive deeper into submenus for specifications, compatibility, and replacement options.

Parts Program 5

2

3

4

Parts Program 5

1

4

Diagram Parts | Select a part to jump to the respective products below.

1 | Complete Downrod (3x) 2 | Safety Retention Cable 3 | VFD to Motor Cable 4 | Mounting Hardware (3x)

Products

3 products

2'

2' Fixed Downrod Complete Assembly

Part Number: 74084

Description: A complete, 2' pre-wired downrod for the XP HVLS fan. Sets the ceiling/structure-to-fan distance at 2' and includes the VFD cable and safety retention cables.

QTY:

$607.92

QTY:

3'

3' Fixed Downrod Complete Assembly

Part Number: 74069

Description: A complete, 3' pre-wired downrod for the XP HVLS fan. Sets the ceiling/structure-to-fan distance at 3' and includes the VFD cable and safety retention cables.

QTY:

$640.50

QTY:

4'

4' Fixed Downrod Complete Assembly

Part Number: 74088

Description: A complete, 4' pre-wired downrod for the XP HVLS fan. Sets the ceiling/structure-to-fan distance at 4' and includes the VFD cable and safety retention cables.

QTY:

$694.60

QTY:

1 product

4'

Short - Safety Retention Cable (2.5' - 4')

Part Number: 74236

Description: Safety Cable Assembly kit for HVLS fans includes a 4' safety retention cable, safety pin with ring, and three U-Bolts. Designed to add an extra layer of protection, it helps keep the downrod and HVLS fan securely in place.

QTY:

$122.04

QTY:

1 product

4'

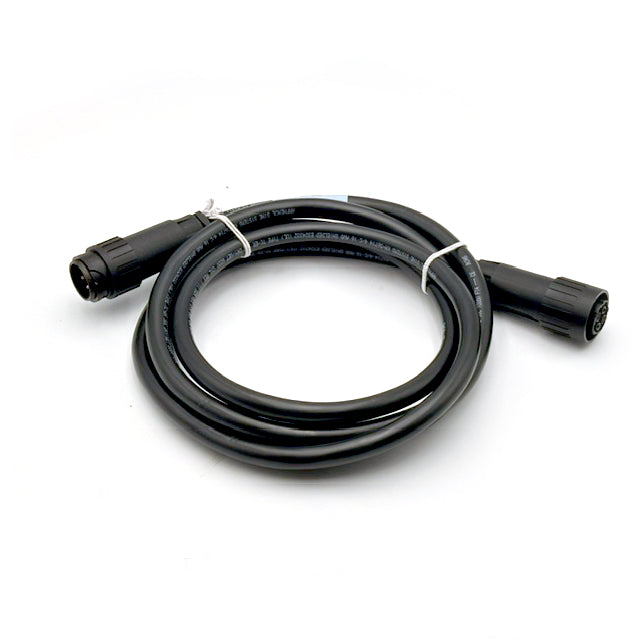

Short - VFD To Motor Cable (2.5' - 4')

Part Number: Y156701000

Description: One 4' cable that connects the HVLS motor to the fan's control drive.

QTY:

$108.42

QTY:

3 products

Mounting Assembly Nuts & Bolts

Part Number: Y111801000

Description: Mounting Assembly Nuts & Bolts kit for downrods includes four 1/2-13x3-1/2 hex bolts, eight flat 1/2 washers, four 1/2-13 nylon insert lock nuts, and three U-Bolts for mounting your downrod.

QTY:

$19.20

QTY:

Downrod Mounting Hardware

Part Number: 74240

Description: Downrod Mounting Hardware kit for downrods includes four 1/2-13x3-1/2 hex bolts, eight flat 1/2 washers, and four 1/2-13 nylon insert lock nuts for mounting your downrod.

QTY:

$37.60

QTY:

Wire Rope Clamp Assembly Kit

Part Number: 74241

Description: Wire Rope Clamp Assembly kit for downrods includes three U-Bolts to affix the safety retention cable and the VFD motor cable together through the downrod.

QTY:

$38.73

QTY:
