PARTS

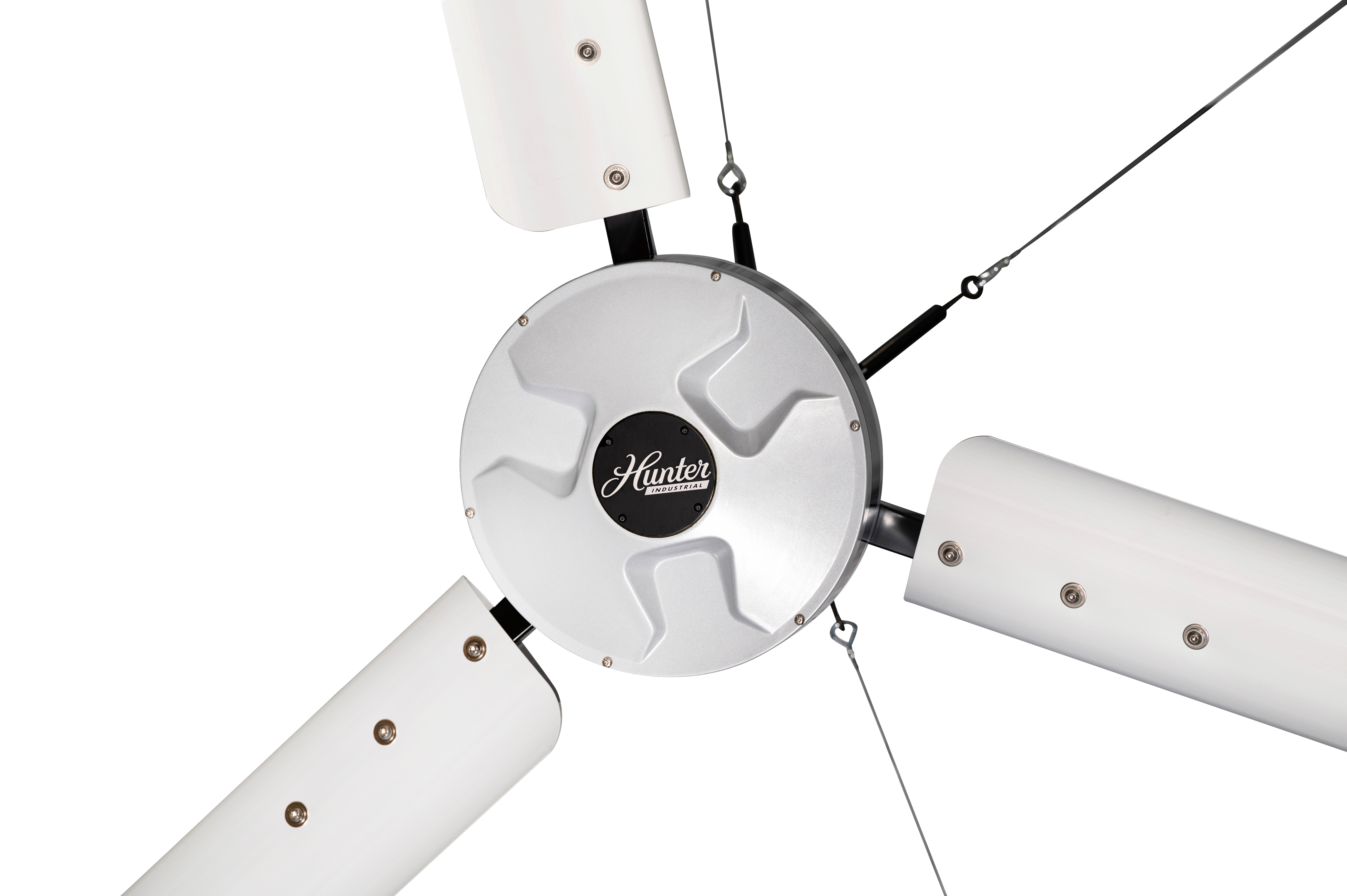

DDI HVLS Industrial Ceiling Fan

Explore the complete anatomy of the DDI HVLS Fan through the interactive exploded view below. Each numbered component corresponds to a specific part of the fan, from the motor and hub assembly to the airfoils and safety features. If you need a Variable Frequency Drive (VFD) for your HVLS fan, click here to learn more about VFDs.

Click on any number to reveal detailed part names below, and dive deeper into submenus for specifications, compatibility, and replacement options.

Parts Program 1
1
3
4
Parts Program 1
2
5
Parts Program 1
7
Parts Program 1
6

Diagram Parts | Select a part to jump to the respective products below.

Products

1 product

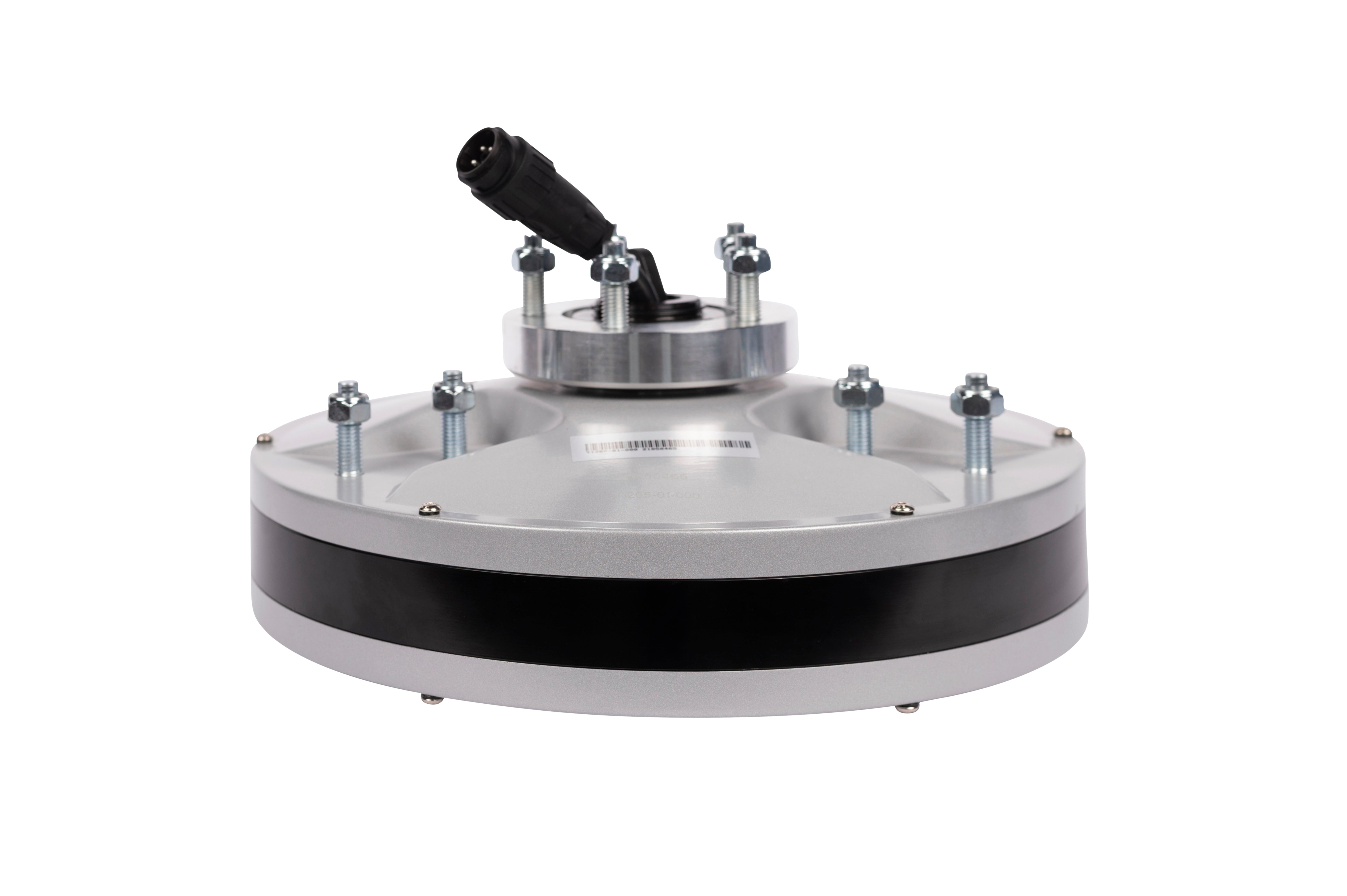

DDI Motor Assembly

Parts Number: 72398

Includes: Fully-assembled replacement motor designed for Hunter Industrial DDI HVLS fans with 20' and 24' blades. Blades sold separately.

QTY:

$1,283.09

QTY:

2 products


24'

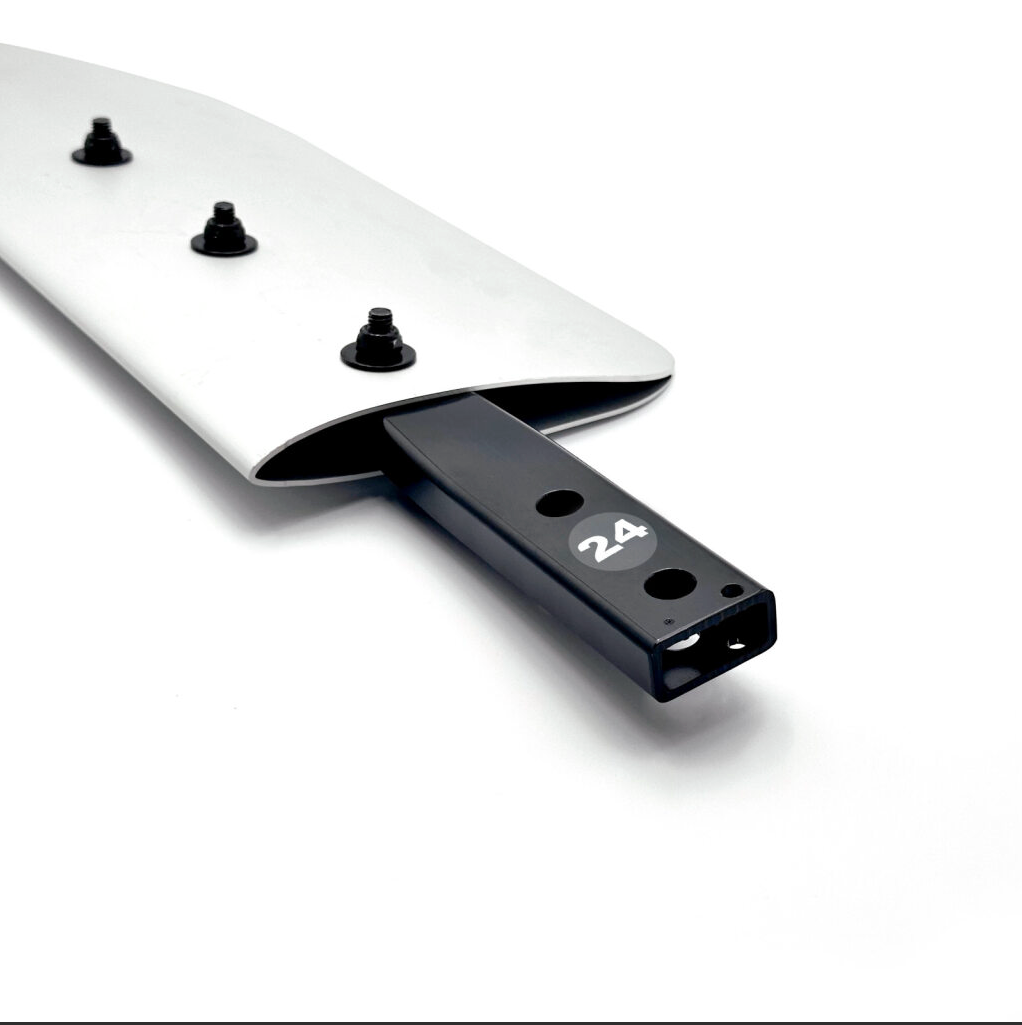

DDI 24' Blade & Blade Holder Assembly

Parts Number: Y134401000

Includes: Includes one complete 24' DDI HVLS fan blade, ready for installation on a DDI HVLS motor assembly.

QTY:

$200.90

QTY:
20'

DDI 20' Blade & Blade Holder Assembly

Parts Number: Y134501000

Includes: Includes one complete 20' DDI HVLS fan blade, ready for installation on a DDI HVLS motor assembly.

QTY:

$171.69

QTY:

1 product


Motor to Downrod Nuts

Parts Number: 74233

Includes: DDI's Motor to Downrod Nuts service pack includes five m12 x 1.75 nylock nuts for securing the motor with the downrod.

QTY:

$30.50

QTY:

3 products


4'

Short - Adjustable Downrod (2.5' - 4')

Parts Number: 72428

Includes: Our patented adjustable downrod allows you to modify the installation height of your HVLS ceiling fan, letting you lengthen or shorten the ceiling-to-fan distance between 2.5' and 4'. It is prewired and includes U-Bolts, a VFD cable, and a safety retention cable.

QTY:

$959.45

QTY:
6'

Medium - Adjustable Downrod (4.5' - 6')

Parts Number: 72429

Includes: Our patented adjustable downrod allows you to modify the installation height of your HVLS ceiling fan, letting you lengthen or shorten the ceiling-to-fan distance between 4.5' and 6'. It is prewired and includes U-Bolts, a VFD cable, and a safety retention cable.

QTY:

$1,077.97

QTY:
10'

Long - Adjustable Downrod (6.5' - 10')

Parts Number: 72430

Includes: Our patented adjustable downrod allows you to modify the installation height of your HVLS ceiling fan, letting you lengthen or shorten the ceiling-to-fan distance between 6.5' and 10'. It is prewired and includes U-Bolts, a VFD cable, and a safety retention cable.

QTY:

$1,233.47

QTY:

1 product


DDI Blade Holder Nuts

Parts Number: 74234

Includes: DDI's Blade Holder Nuts service pack includes five m12 x 1.75 nylock nuts for securing the blades to the motor.

QTY:

$31.55

QTY:

1 product

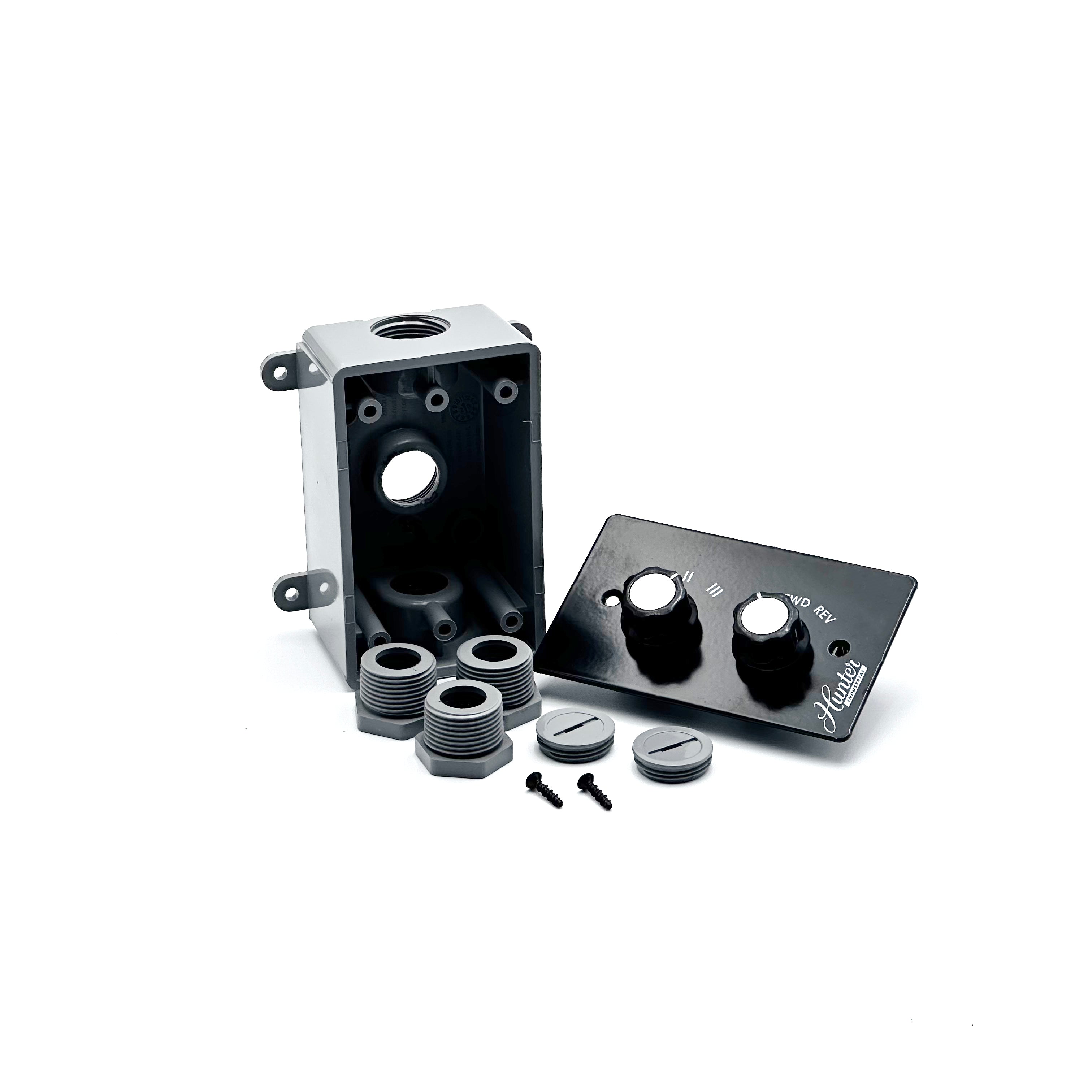

DDI 3 Speed Wall Control

Parts Number: Y133201000

Includes: 3-speed analog wall controller that allows you to control your DDI HVLS fan. Includes two screws to attach the front panel to the housing.

QTY:

$47.90

QTY:
