Titan HVLS Industrial Ceiling Fan Parts – Hunter Industrial

PARTS

Titan HVLS Industrial Ceiling Fan

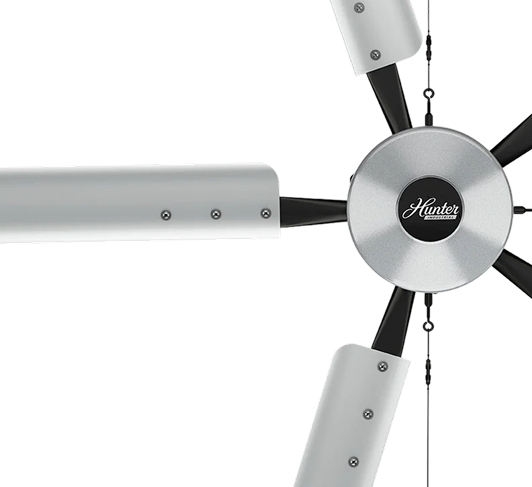

Explore the complete anatomy of the Titan HVLS Industrial Ceiling Fan through the interactive exploded view below. Each numbered component corresponds to a specific part of the fan, from the motor and hub assembly to the airfoils and safety features. If you need a Variable Frequency Drive (VFD) for your HVLS fan, click here to learn more about VFDs.

Click on any number to reveal detailed part names below, and dive deeper into submenus for specifications, compatibility, and replacement options.

Parts Program 1
4
2
1
Parts Program 2
3
Parts Program 5
5
5

Diagram Parts | Select a part to jump to the respective products below.

Products

2 products

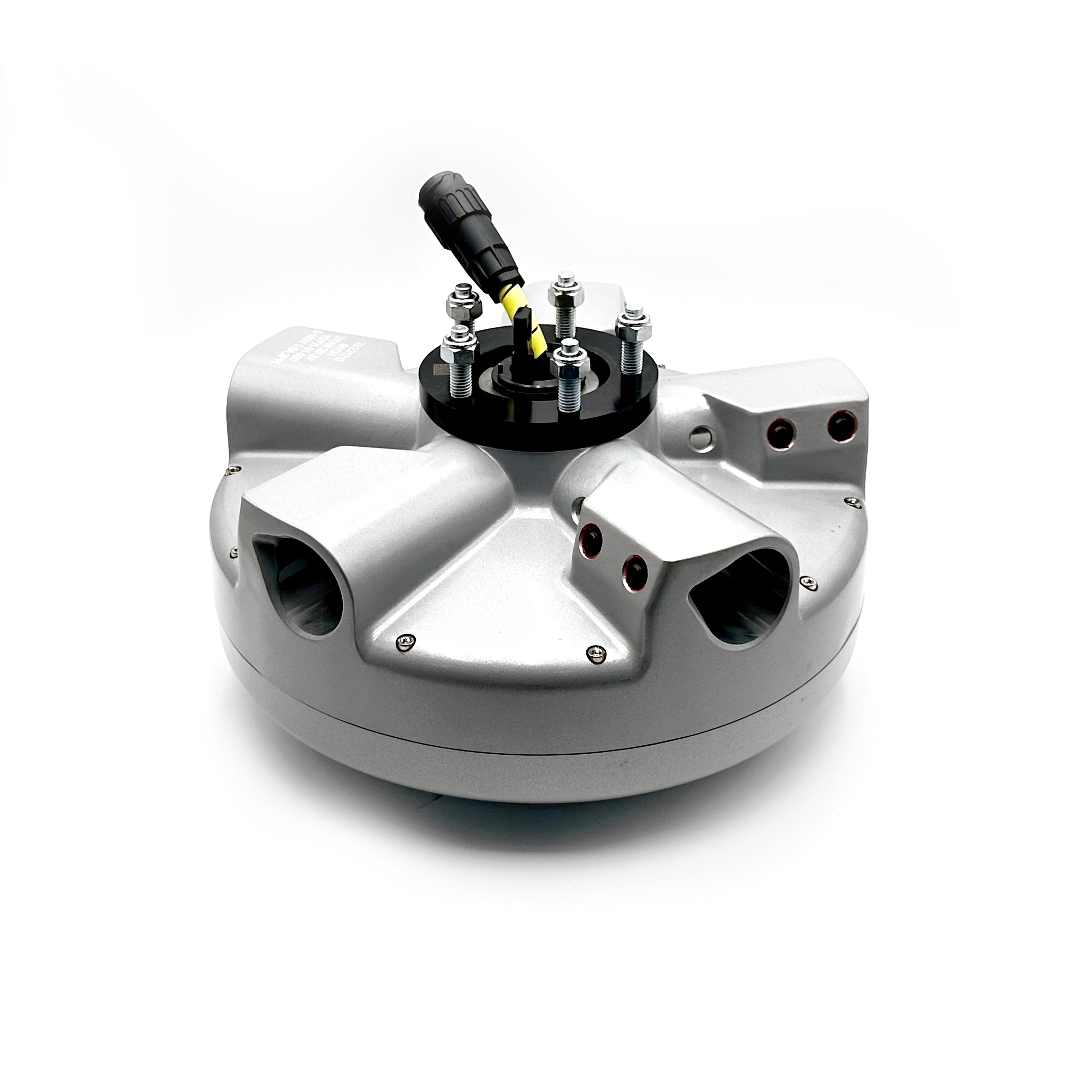

Titan 20' - 24' Motor Assembly

Parts Number: 72376

Includes: Fully-assembled replacement motor designed for Hunter Industrial Titan HVLS fans with 20' or 24' blades. Blades sold separately.

QTY:

$2,748.37

QTY:

Titan 14' - 18' Motor Assembly

Parts Number: 72377

Includes: Fully-assembled replacement motor designed for Hunter Industrial Titan HVLS fans with 14', 16', or 18' blades. Blades sold separately.

QTY:

$2,748.37

QTY:

5 products


24'

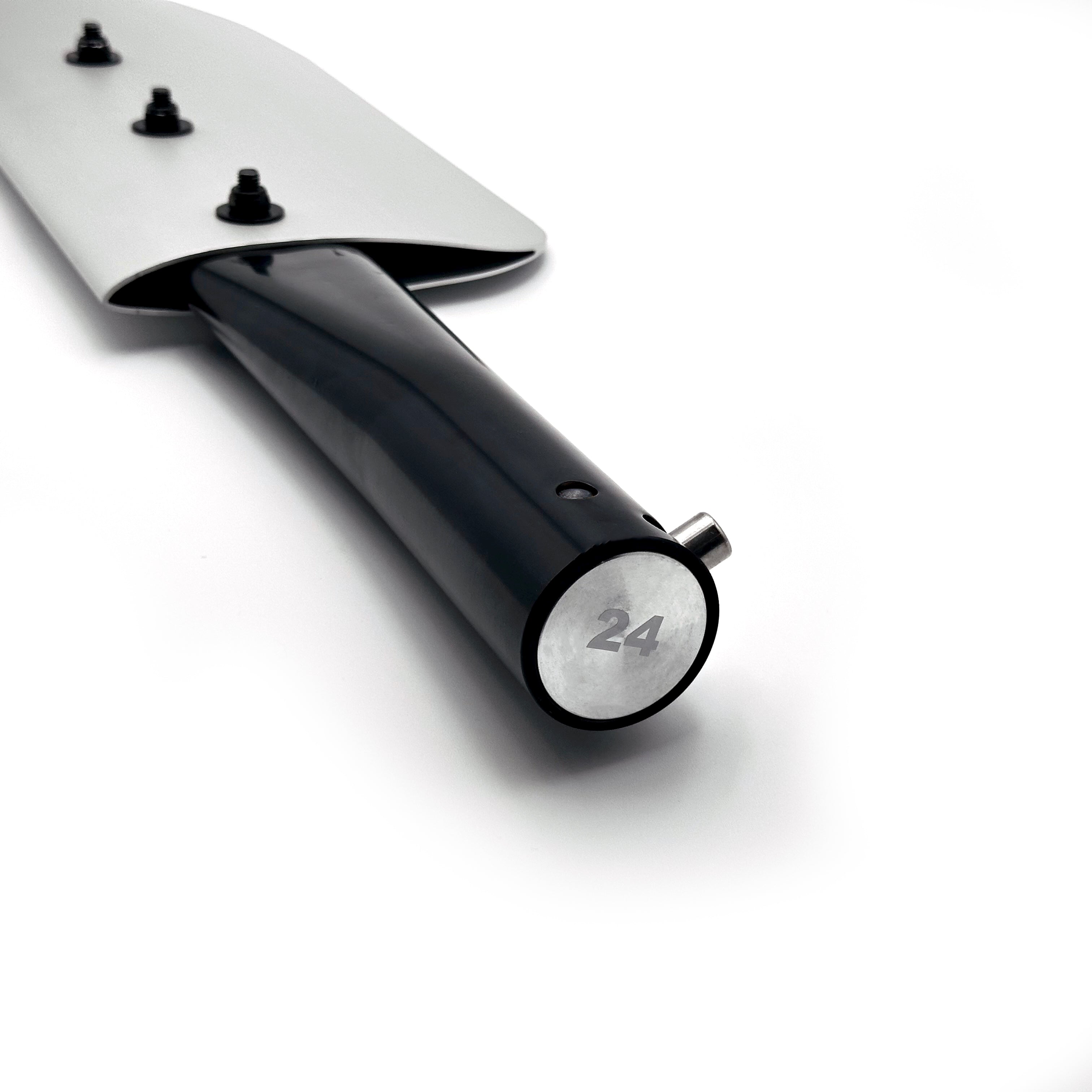

Titan 24' Blade & Blade Holder Assembly

Parts Number: Y072301000

Includes: Fully-assembled, single fan blade replacement for a Hunter 24' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$236.85

QTY:
20'

Titan 20' Blade & Blade Holder Assembly

Parts Number: Y072401000

Includes: Fully-assembled, single fan blade replacement for a Hunter 20' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$207.64

QTY:
18'

Titan 18' Blade & Blade Holder Assembly

Parts Number: Y072501000

Includes: Fully-assembled, single fan blade replacement for a Hunter 18' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$198.08

QTY:
16'

Titan 16' Blade & Blade Holder Assembly

Parts Number: Y072601000

Includes: Fully-assembled, single fan blade replacement for a Hunter 16' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$187.69

QTY:
14'

Titan 14' Blade & Blade Holder Assembly

Parts Number: Y072701000

Includes: Fully-assembled, single fan blade replacement for a Hunter 14' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$173.03

QTY:

1 product


Motor to Downrod Nuts

Parts Number: 74233

Includes: Titan's Motor to Downrod Nuts service pack includes five m12 x 1.75 nylock nuts for securely attaching the motor to the downrod.

QTY:

$30.50

QTY:

3 products


4'

Short - Adjustable Downrod (2.5' - 4')

Parts Number: 72428

Includes: Our patented adjustable downrod allows you to modify the installation height of your HVLS ceiling fan, letting you lengthen or shorten the ceiling-to-fan distance between 2.5' and 4'. It is prewired and includes U-Bolts, a VFD cable, and a safety retention cable.

QTY:

$959.45

QTY:
6'

Medium - Adjustable Downrod (4.5' - 6')

Parts Number: 72429

Includes: Our patented adjustable downrod allows you to modify the installation height of your HVLS ceiling fan, letting you lengthen or shorten the ceiling-to-fan distance between 4.5' and 6'. It is prewired and includes U-Bolts, a VFD cable, and a safety retention cable.

QTY:

$1,077.97

QTY:
10'

Long - Adjustable Downrod (6.5' - 10')

Parts Number: 72430

Includes: Our patented adjustable downrod allows you to modify the installation height of your HVLS ceiling fan, letting you lengthen or shorten the ceiling-to-fan distance between 6.5' and 10'. It is prewired and includes U-Bolts, a VFD cable, and a safety retention cable.

QTY:

$1,233.47

QTY:

1 product

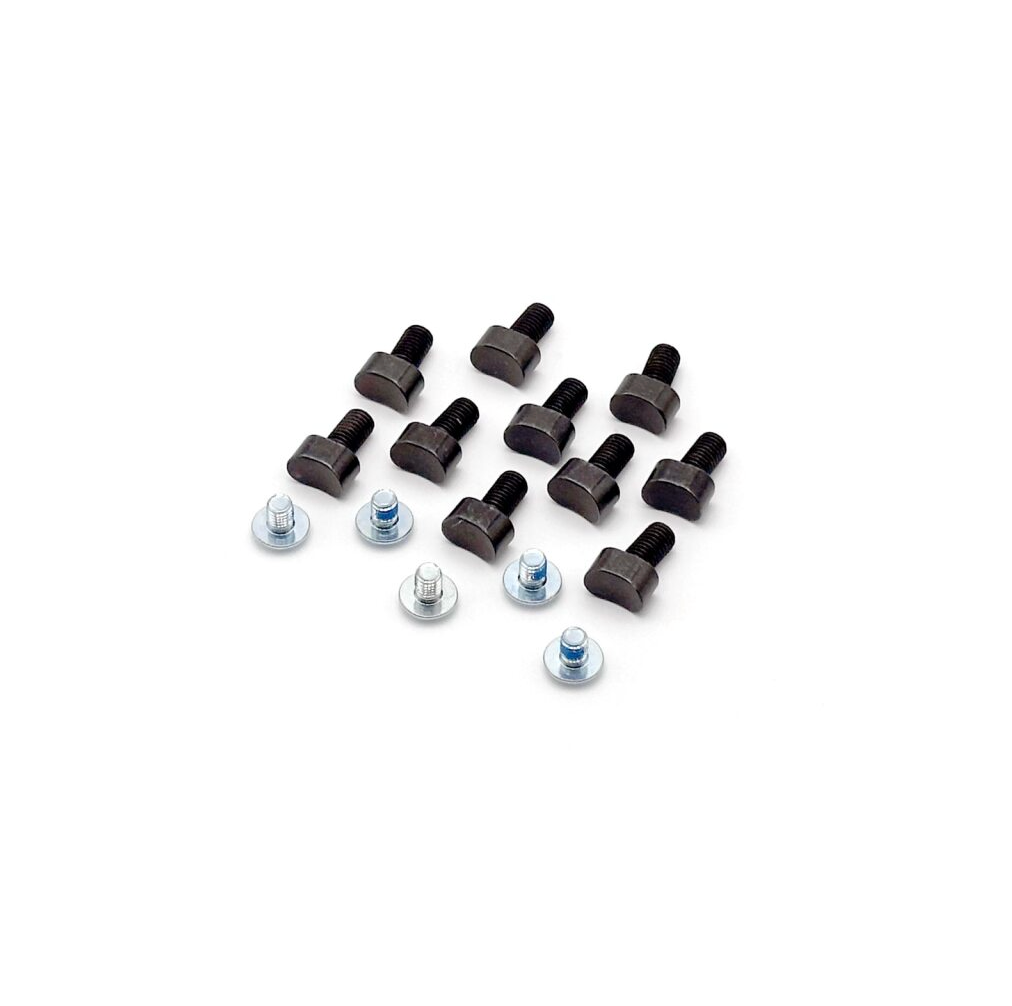

Titan Blade Holder Screws & Blade Holder Safety Bolt

Parts Number: 74232

Includes: Titan's Blade Holder Nuts service pack includes five m8 x 1.25 10mm screws with thread locker patches and ten grub screws with saddles, designed to securely attach the blades to the motor.

QTY:

$206.75

QTY:
