PARTS

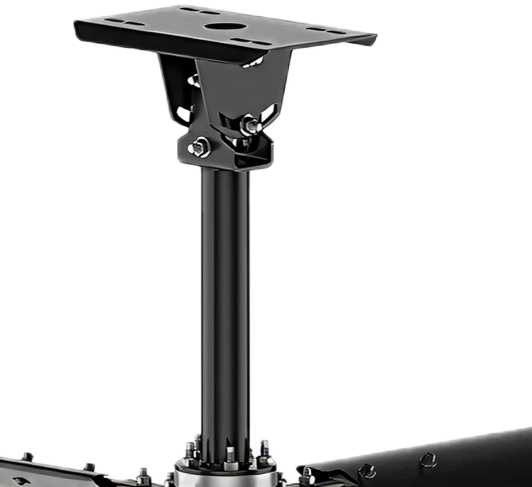

XP Fixed Downrod

Explore the complete anatomy of the XP Fixed Downrod through the interactive exploded view below. Each numbered component corresponds to a specific part of the fan, from the motor and hub assembly to the airfoils and safety features.

Click on any number to reveal detailed part names below, and dive deeper into submenus for specifications, compatibility, and replacement options.

Parts Program 5

2

3

4

Parts Program 5

1

4

Diagram Parts | Select a part to jump to the respective products below.

1 | Complete Downrod (3x) 2 | Safety Retention Cable 3 | VFD to Motor Cable 4 | Mounting Hardware (3x)

Products

3 products

2'

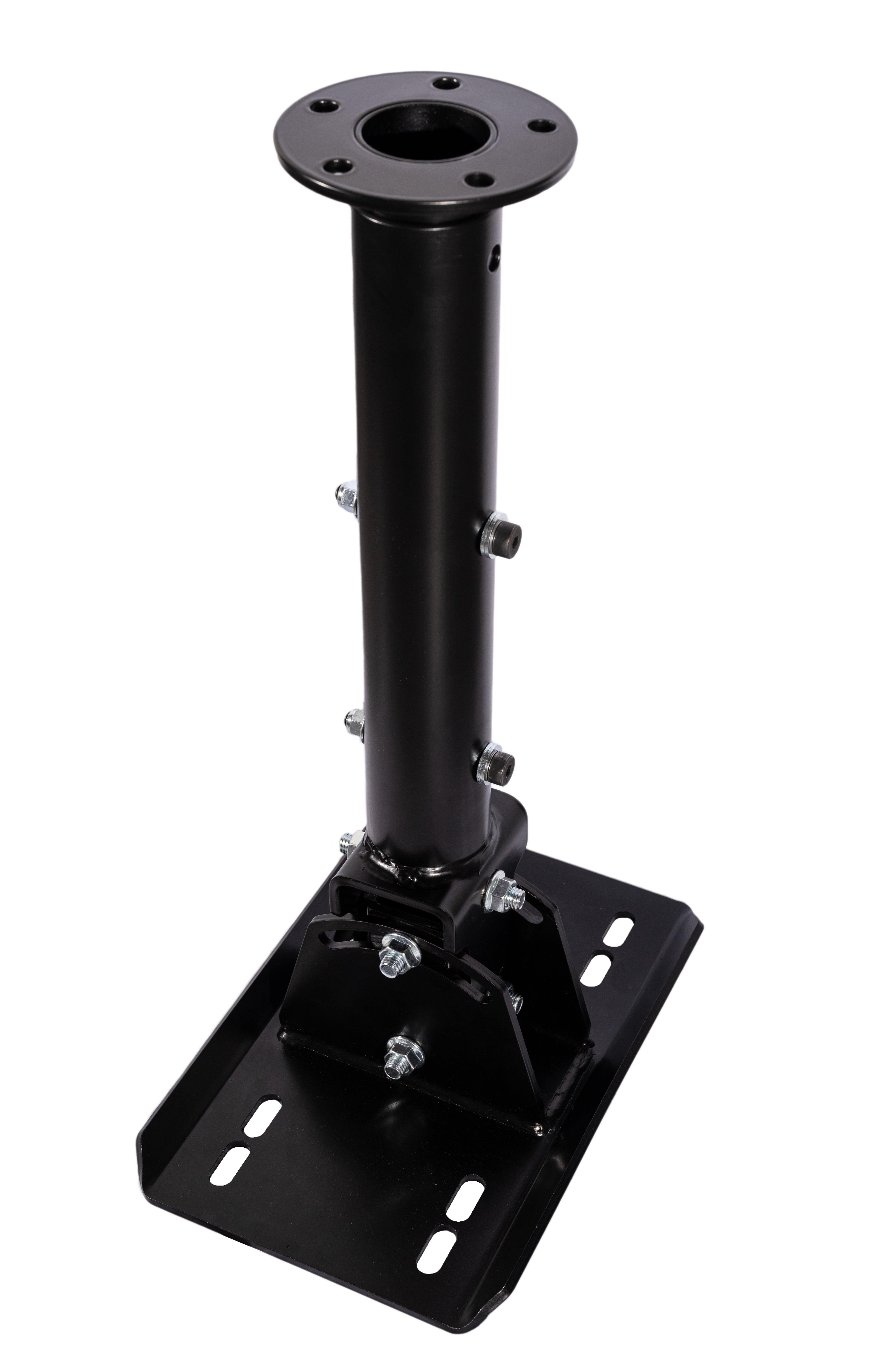

2' Fixed Downrod

Parts Number: 74084

Includes: A complete, 2' pre-wired downrod for the XP HVLS fan. Sets a 2' ceiling-to-fan distance and includes the VFD cable and safety retention cables.

QTY:

$607.92

QTY:

3'

3' Fixed Downrod

Parts Number: 74069

Includes: A complete, 3' pre-wired downrod for the XP HVLS fan. Sets a 3' ceiling-to-fan distance and includes the VFD cable and safety retention cables.

QTY:

$640.50

QTY:

4'

4' Fixed Downrod

Parts Number: 74088

Includes: A complete, 4' pre-wired downrod for the XP HVLS fan. Sets a 4' ceiling-to-fan distance and includes the VFD cable and safety retention cables.

QTY:

$694.60

QTY:

1 product

4'

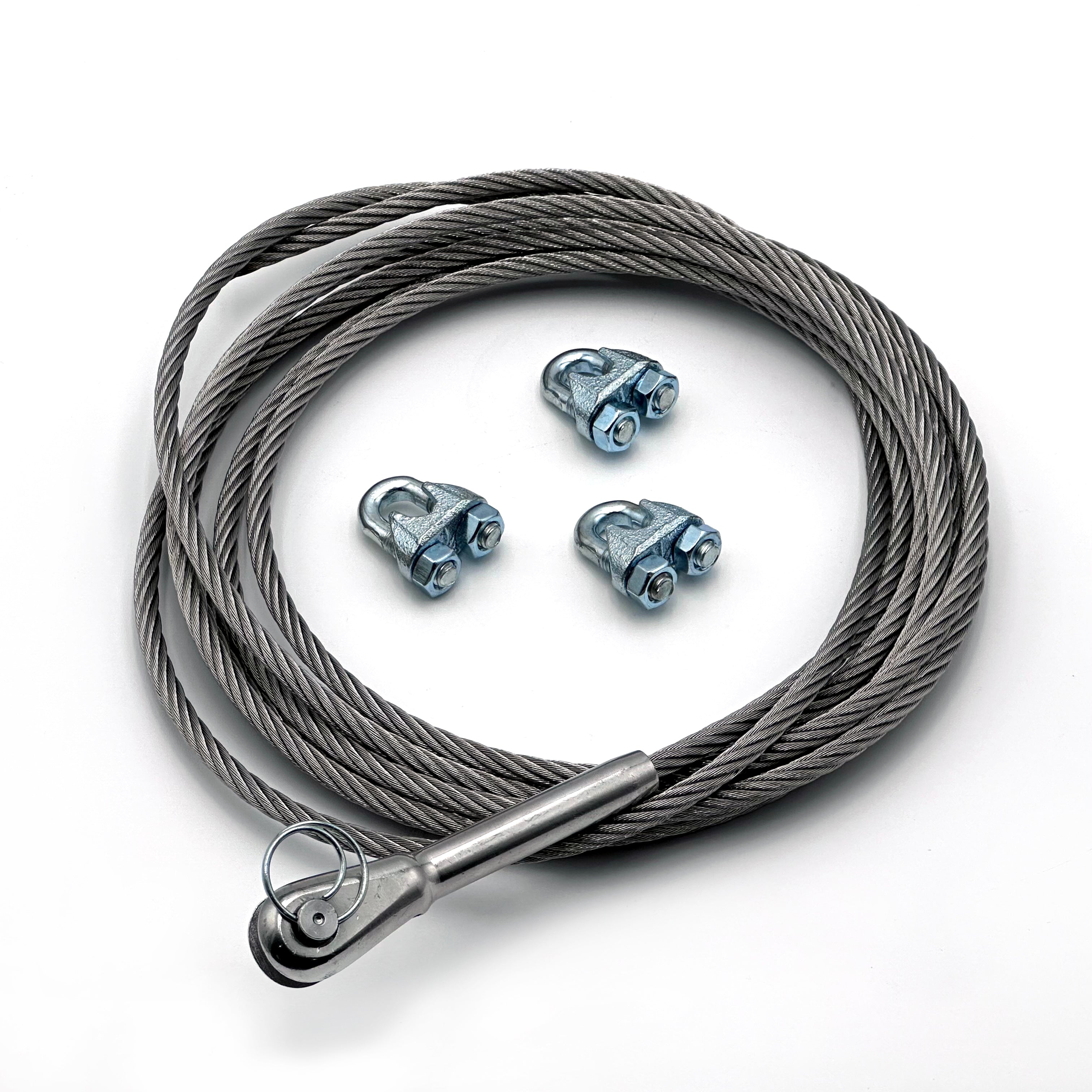

Short - Safety Retention Cable (2.5' - 4')

Parts Number: 74236

Includes: Includes one 4' safety retention cable and three U-Bolts made for downrods between 2.5' and 4' and ensures the fan's safe installation to the ceiling.

QTY:

$122.04

QTY:

1 product

4'

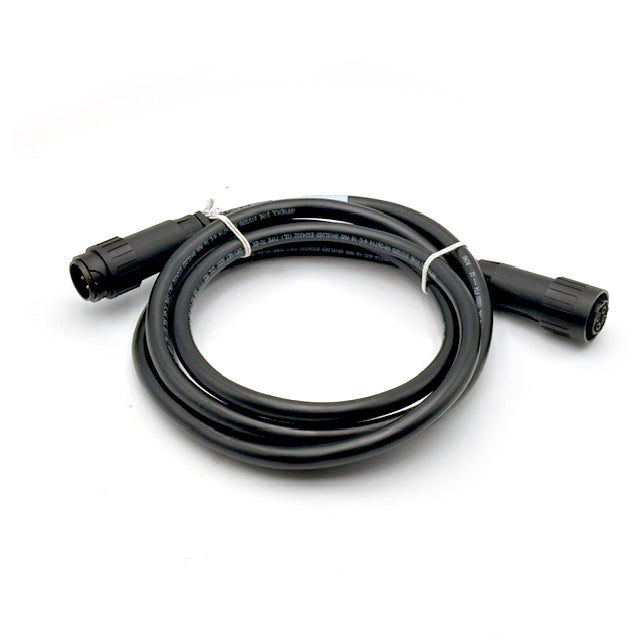

Short - VFD To Motor Cable (2.5' - 4')

Parts Number: Y156701000

Includes: One 4' cable that connects the HVLS motor to the fan's control drive.

QTY:

$108.42

QTY:

3 products

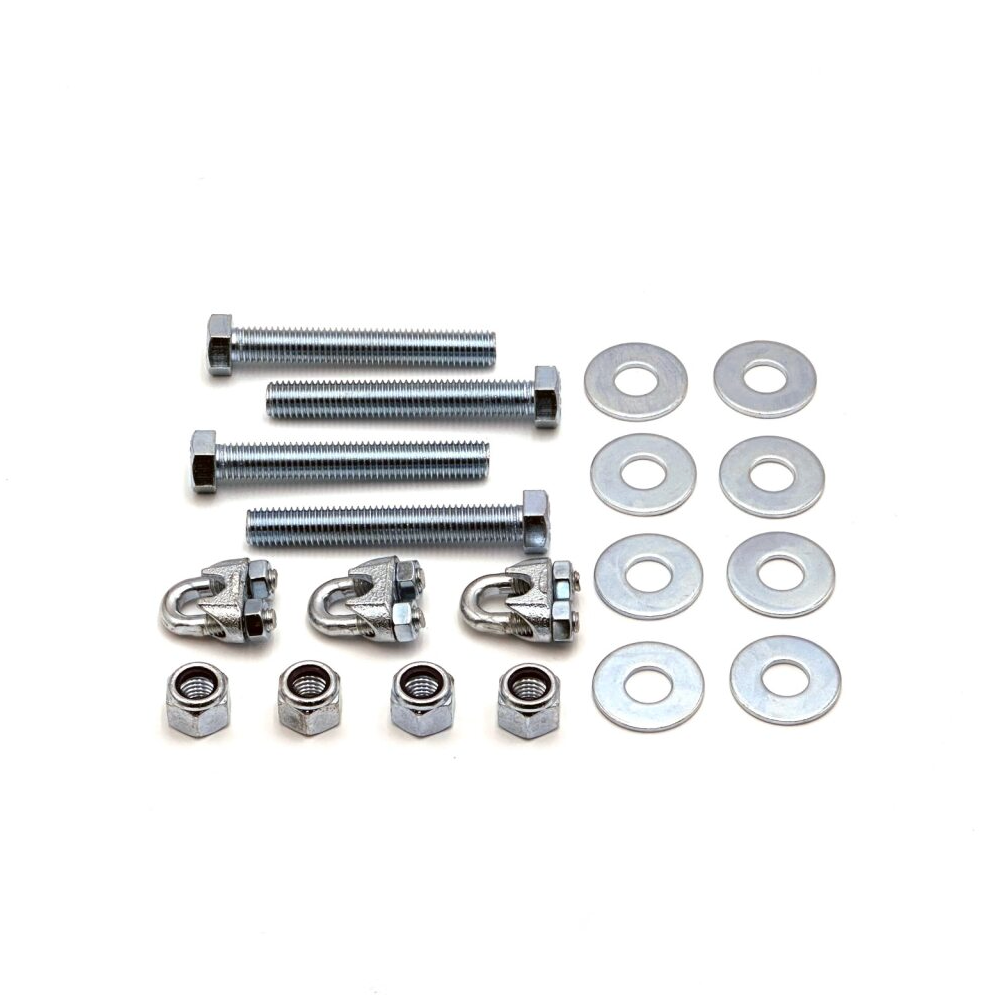

Mounting Assembly Nuts & Bolts

Parts Number: Y111801000

Includes: Mounting Assembly Nuts & Bolts kit for downrods includes four 1/2-13x3-1/2 hex bolts, eight flat 1/2 washers, four 1/2-13 nylon insert lock nuts, and three U-Bolts for mounting your downrod.

QTY:

$19.20

QTY:

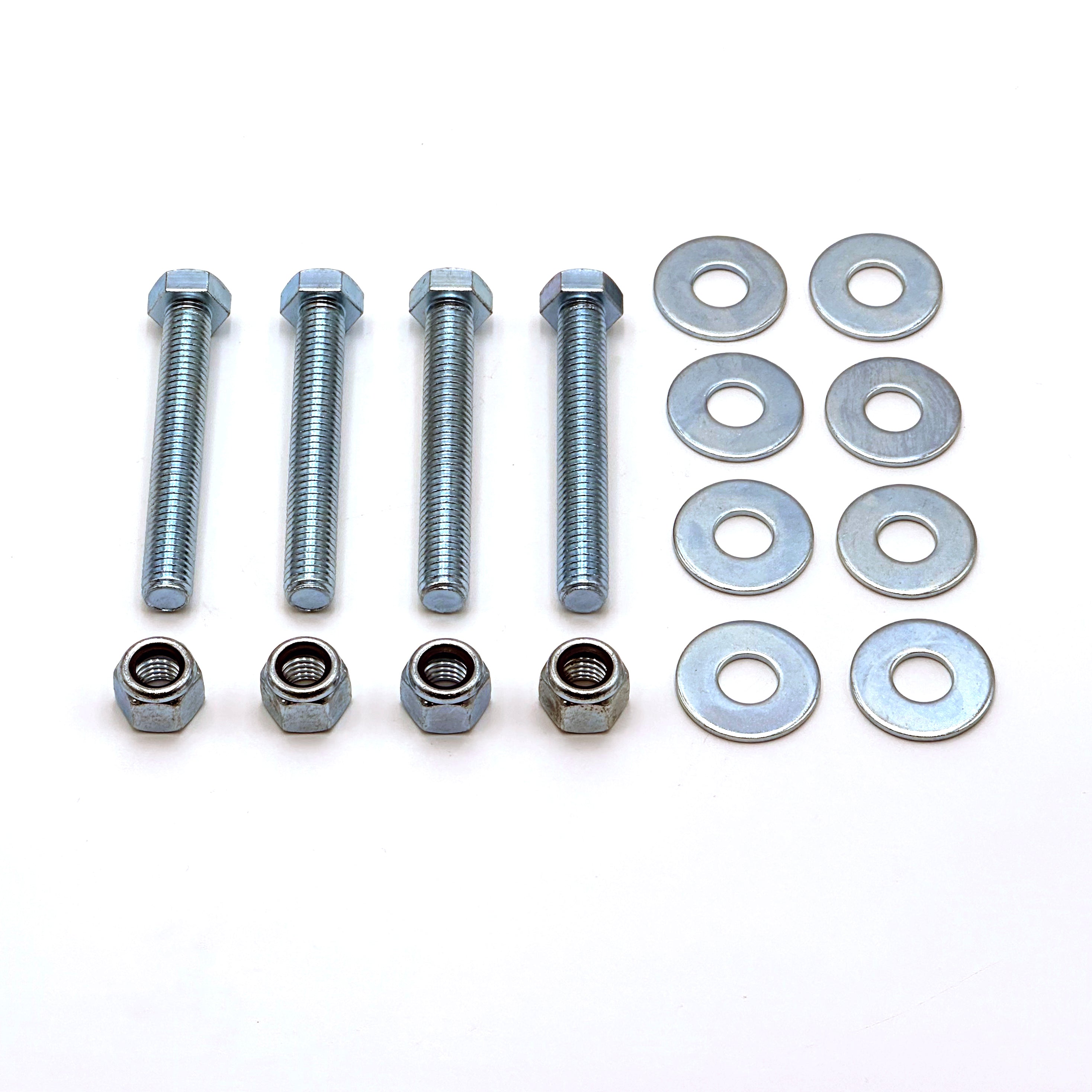

Downrod Mounting Hardware

Parts Number: 74240

Includes: Downrod Mounting Hardware kit for downrods includes four 1/2-13x3-1/2 hex bolts, eight flat 1/2 washers, and four 1/2-13 nylon insert lock nuts for mounting your downrod.

QTY:

$37.60

QTY:

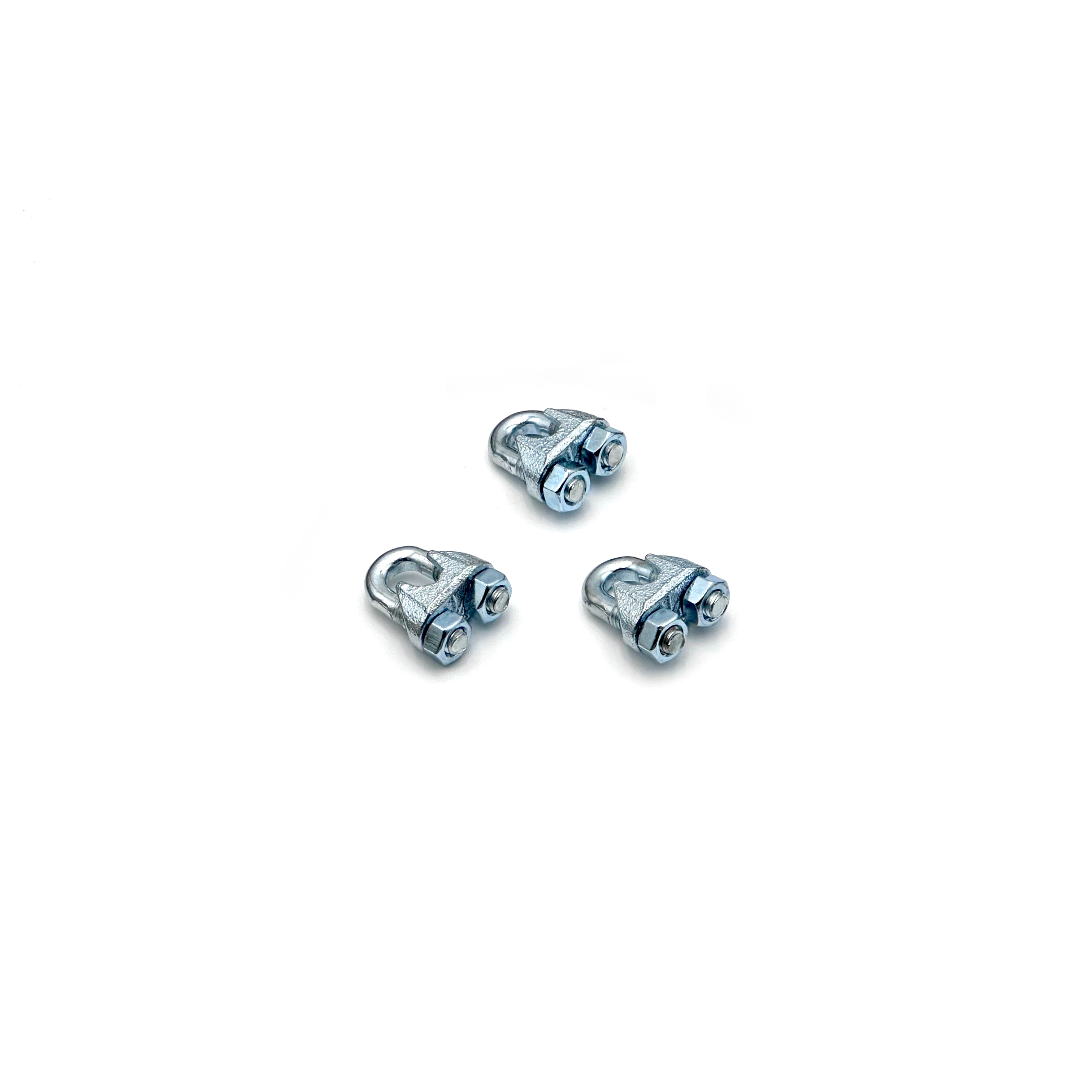

Wire Rope Clamp Assembly

Parts Number: 74241

Includes: Wire Rope Clamp Assembly kit for downrods includes three U-Bolts to affix the safety retention cable and the VFD motor cable together through the downrod.

QTY:

$38.73

QTY:
