PARTS

XP HVLS Industrial Ceiling Fan

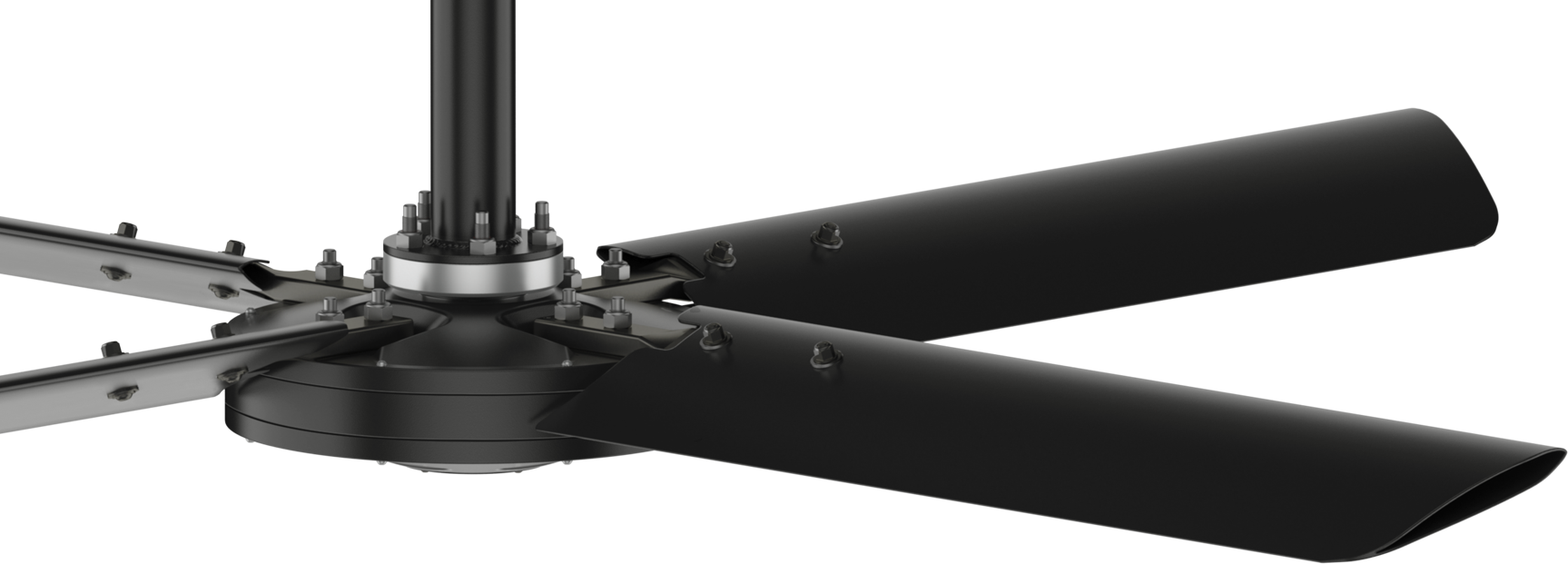

Explore the complete anatomy of the XP HVLS Industrial Ceiling Fan through the interactive exploded view below. Each numbered component corresponds to a specific part of the fan, from the motor and hub assembly to the airfoils and safety features. If you need a Variable Frequency Drive (VFD) for your HVLS fan, click here to learn more about VFDs.

Click on any number to reveal detailed part names below, and dive deeper into submenus for specifications, compatibility, and replacement options.

Parts Program 5

1

2

4

3

5

Parts Program 5

1

3

5

Parts Program 5

2

4

Diagram Parts | Select a part to jump to the respective products below.

1 | Motor Hub Assembly (2x) 2 | Blade & Blade Holder Assembly (5x) 3 | Service Pack - Motor to Downrod Nuts 4 | Fixed Downrod (3x) 5 | Service Pack - Blade Holder Nuts

Products

2 products

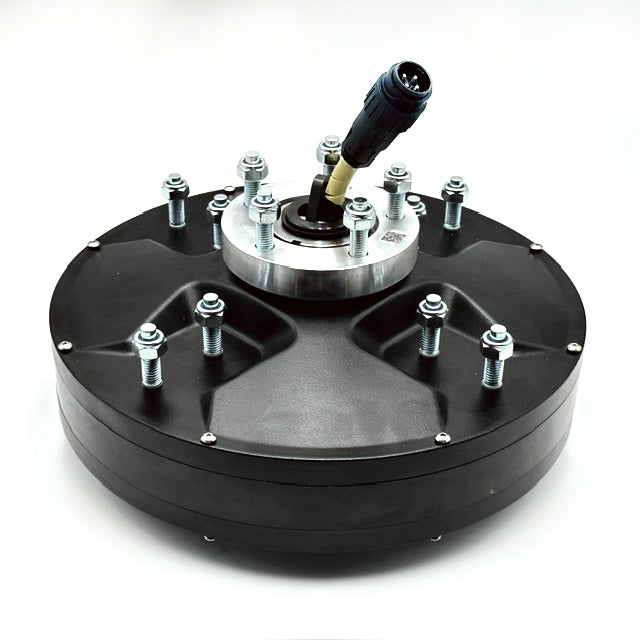

XP 12' - 14' Motor Assembly

Parts Number: 72396

Includes: Fully-assembled replacement motor designed for Hunter Industrial XP HVLS fans with 12' or 14' blades. Blades sold separately.

QTY:

$1,695.60

QTY:

XP 7' - 10' Motor Assembly

Parts Number: 72397

Includes: Fully-assembled replacement motor designed for Hunter Industrial XP HVLS fans with 7', 8', or 10' blades. Blades sold separately.

QTY:

$1,695.60

QTY:

5 products

14'

XP 14' Blade & Blade Holder Assembly

Parts Number: Y043501000

Includes: Fully-assembled, single fan blade replacement for a Hunter 14' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly

QTY:

$146.19

QTY:

12'

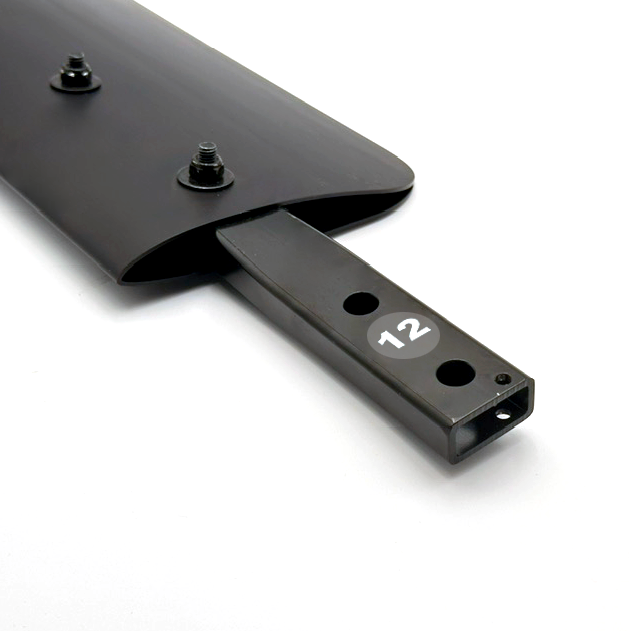

XP 12' Blade & Blade Holder Assembly

Parts Number: Y043601000

Includes: Fully-assembled, single fan blade replacement for a Hunter 12' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly

QTY:

$142.17

QTY:

10'

XP 10' Blade & Blade Holder Assembly

Parts Number: Y043701000

Includes: Fully-assembled, single fan blade replacement for a Hunter 10' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly

QTY:

$130.55

QTY:

8'

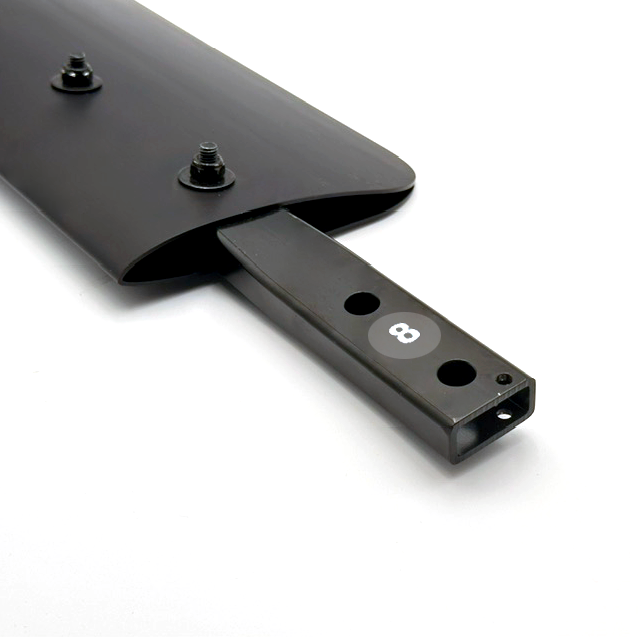

XP 8' Blade & Blade Holder Assembly

Parts Number: Y043801000

Includes: Fully-assembled, single fan blade replacement for a Hunter 8' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly

QTY:

$119.71

QTY:

7'

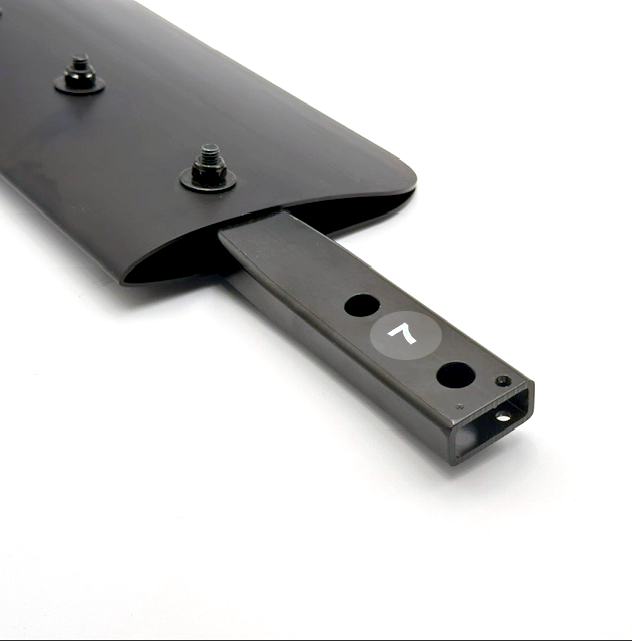

XP 7' Blade & Blade Holder Assembly

Parts Number: Y075701000

Includes: Fully-assembled, single fan blade replacement for a Hunter 7' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly

QTY:

$116.15

QTY:

1 product

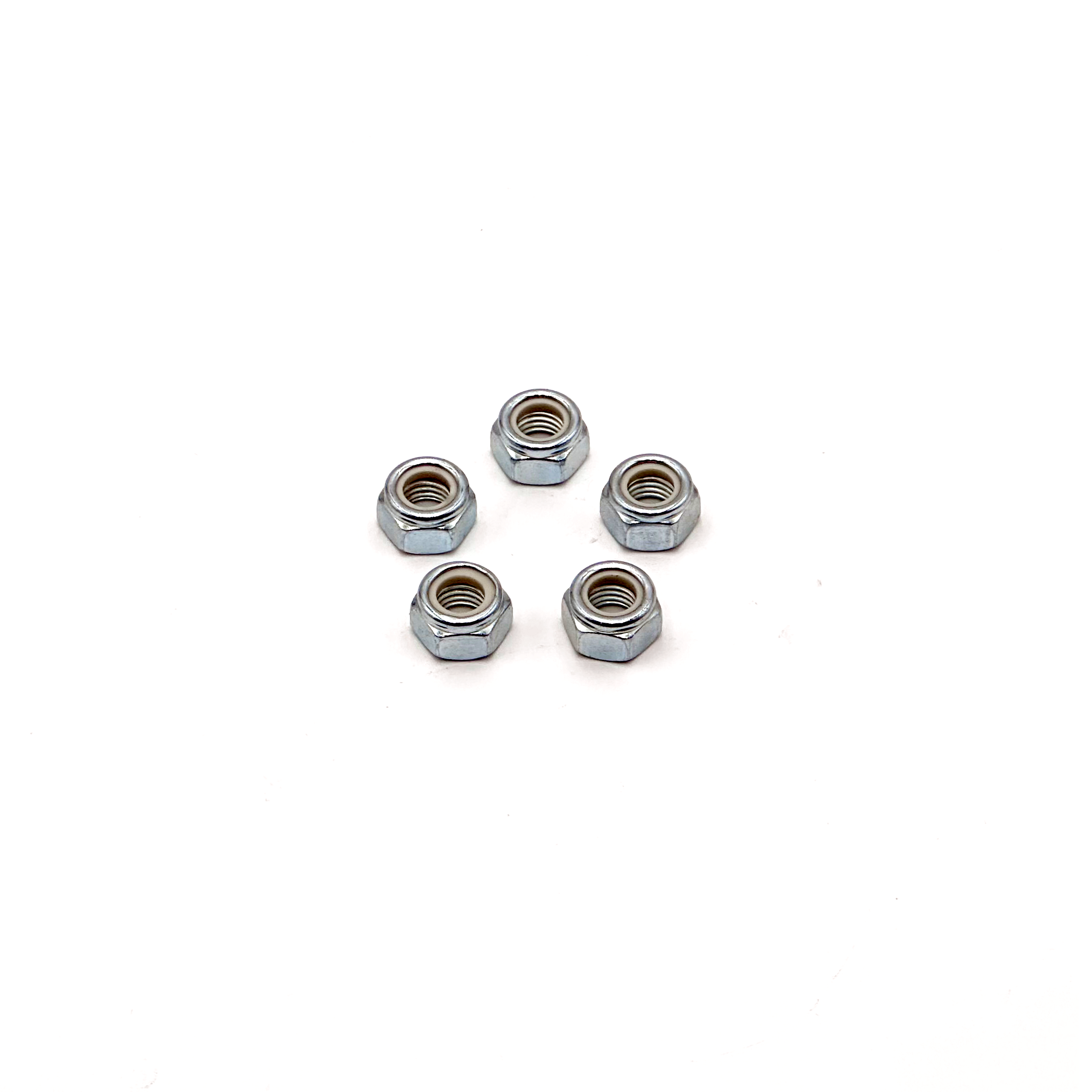

Motor to Downrod Nuts

Parts Number: 74233

Includes: XP's Motor to Downrod Nuts service pack includes five m12 x 1.75 nylock nuts for securely attaching the motor to the downrod.

QTY:

$30.50

QTY:

3 products

2'

2' Fixed Downrod Complete Assembly

Parts Number: 74084

Includes: A complete, 2' pre-wired downrod for the XP HVLS fan. Sets the ceiling/structure-to-fan distance at 2' and includes the VFD cable and safety retention cables.

QTY:

$607.92

QTY:

3'

3' Fixed Downrod Complete Assembly

Parts Number: 74069

Includes: A complete, 3' pre-wired downrod for the XP HVLS fan. Sets the ceiling/structure-to-fan distance at 3' and includes the VFD cable and safety retention cables.

QTY:

$640.50

QTY:

4'

4' Fixed Downrod Complete Assembly

Parts Number: 74088

Includes: A complete, 4' pre-wired downrod for the XP HVLS fan. Sets the ceiling/structure-to-fan distance at 4' and includes the VFD cable and safety retention cables.

QTY:

$694.60

QTY:

1 product

XP Blade Holder Nuts

Parts Number: 74234

Includes: XP's Blade Holder Nuts service pack includes five m12 x 1.75 nylock nuts, designed to securely attach the blades to the motor.

QTY:

$31.55

QTY:
